Phenolic sheets can withstand high temperatures, with a maximum operating temperature typically ranging between 120°C to 250°C (about 250°F to 480°F), depending on the specific type and grade of phenolic material.
Standard phenolic sheets generally have a maximum temperature around 120°C to 150°C (about 250°F to 300°F).
High-temperature phenolic grades can handle temperatures up to 250°C (about 480°F).
Beyond these temperatures, phenolic materials may start to degrade or lose their structural integrity.

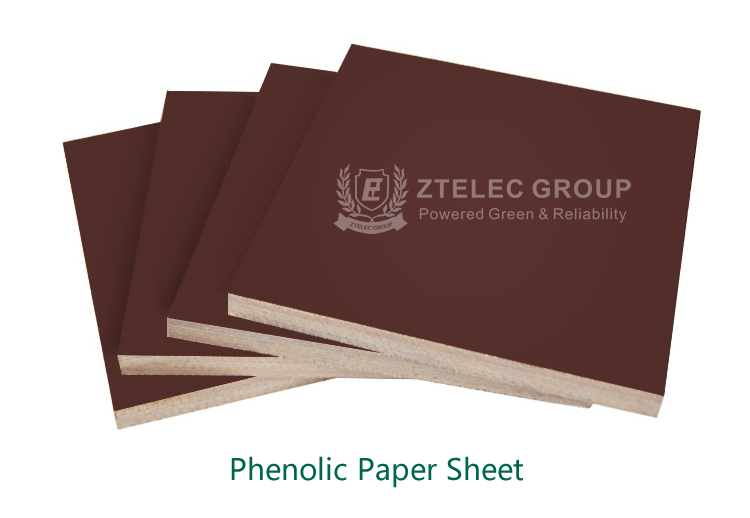

Phenolic sheets are composite materials made from phenolic resin combined with various reinforcing fibers.
The basic composition of a phenolic sheet includes the following:
Phenolic Resin: The matrix or binder that holds the material together. Phenolic resin is a thermosetting polymer, known for its excellent heat resistance, chemical resistance, and mechanical strength. It’s formed by the reaction of phenol and formaldehyde.
Reinforcing Material (Fibers or Fillers): The resin is reinforced with fibers to enhance its mechanical properties, such as strength, stiffness, and durability. Common reinforcing materials include:
Paper: Used for paper-reinforced phenolic sheets (low-cost, good electrical insulation properties).
Cotton Fabric: Used in cotton fabric-reinforced phenolic sheets for improved toughness and machinability.
Glass Fabric: Provides higher strength and heat resistance compared to paper or cotton, used in more demanding applications.
Carbon Fiber: Used for high-performance phenolic sheets, offering even greater strength and heat resistance.
Curing Agents and Additives: Sometimes, additional chemicals like curing agents or flame retardants are added to improve specific properties such as fire resistance, UV resistance, or electrical insulation.
The combination of phenolic resin with reinforcing materials gives the sheets excellent thermal stability, mechanical strength, and resistance to moisture, chemicals, and electricity, making them suitable for a wide range of industrial applications.
