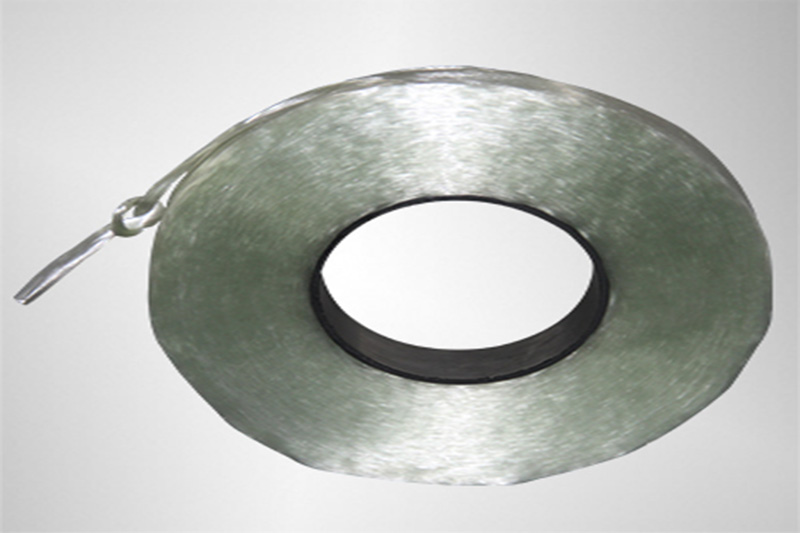

Unidirectional binding strap, also known as nonwoven tape, is a parallel arrangement of continuous fiber tapes, composed of nonwoven yarns bonded together with adhesive, and has excellent electrical insulation performance.
Email:[email protected] Whatsapp:+8613137718313
Unidirectional binding strap, also known as nonwoven tape, is a parallel arrangement of continuous fiber tapes, composed of nonwoven yarns bonded together with adhesive. It has excellent electrical insulation properties, good flexibility, and high tensile strength, making it the most suitable binding material for large motors, transformers, surge arresters, and inductors.
| Product Name： | Heat resistance grade | Specification | |
| 2830 Parallel Unidirectional Binding Tape |
B Class | Thickness 0.17mm | 25mm Width (2.5～2.6)kg/roll 250m (1.0～1.1)kg/roll 100m 50mm Width (2.0～2.1)kg/roll 100m (1.0～1.1)kg/roll 50m |
| 2841 Parallel Unidirectional Binding Tape |
F Class | ||
| 2841 Mesh Unidirectional Binding Tape |
F Class | Thickness 0.30mm | 25mm Width (2.5～2.6) kg/roll 200m 50mm Width (2.5～2.6)kg/roll 100m |
| 2851 Mesh Unidirectional Binding Tape |
H Class | ||
Storage: Tear open below 30°C; if the temperature exceeds 30°C, store in a refrigerator.
Shelf life: 2 months (26-30°C), 3 months (21-25°C), 4 months (16-20°C)
