There are three ISO certificates for quality certification. The certificates will be shown later. ISO
After receiving the advance payment, the production cycle is 15-25 days. And the transportation cycle should be calcul……
We supply with installation guide and user manual for each transformer. If you do not understand them. We will offer v……
Color: reddish brown, black
Diameter: 1-200mm
Length: support customize
Bending strength: 100Mpa
Density: 1.2-1.3g/m³
Email:[email protected] Whatsapp:+8613137718313

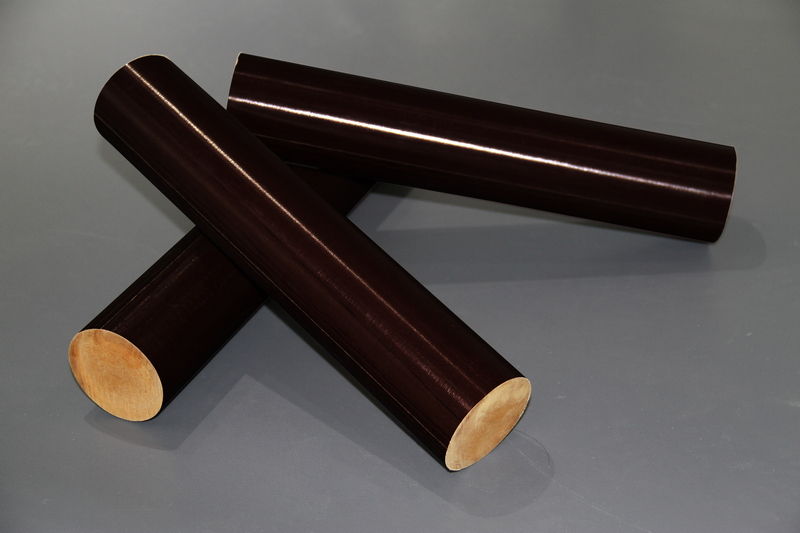

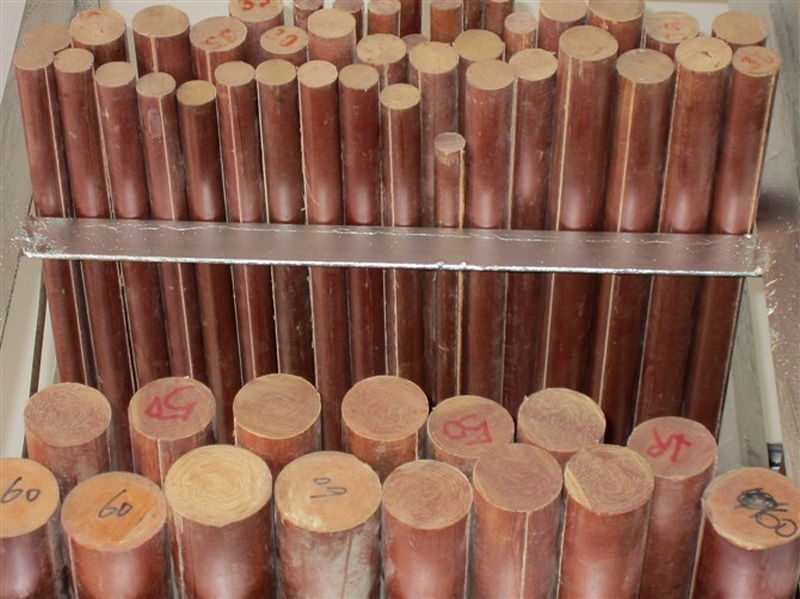

The phenolic cotton laminated rod is a cotton cloth impregnated with a phenolic resin, baked into a prepreg, and then wound, and finally hot pressed in a molding mold to form a rod with high mechanical properties and processability with a circular cross section. The heat resistance grade is E grade.
Bakelite cotton rod produce video：
Line Phenolic Rod Parameters:
| chinese name | – | phenolic rod |
| IEC | – | PFCC41 |
| color | – | Brown |
| density | g/m³ | 1.2-1.3 |
| Vertical layer bending strength (normal) | MPa | ≥125 |
| Axial compressive strength | MPa | ≥90 |
| Parallel layer breakdown voltage (90 ° C transformer oil) | Kv | ≥10 |
| Insulation resistance after immersion in water | MΩ | ≥5 |
| Dielectric loss factor (50Hz) | – | ≤0.03 |
| Water absorption | mg/cm2 | ≤5 |
| Temperature index | – | 120 |

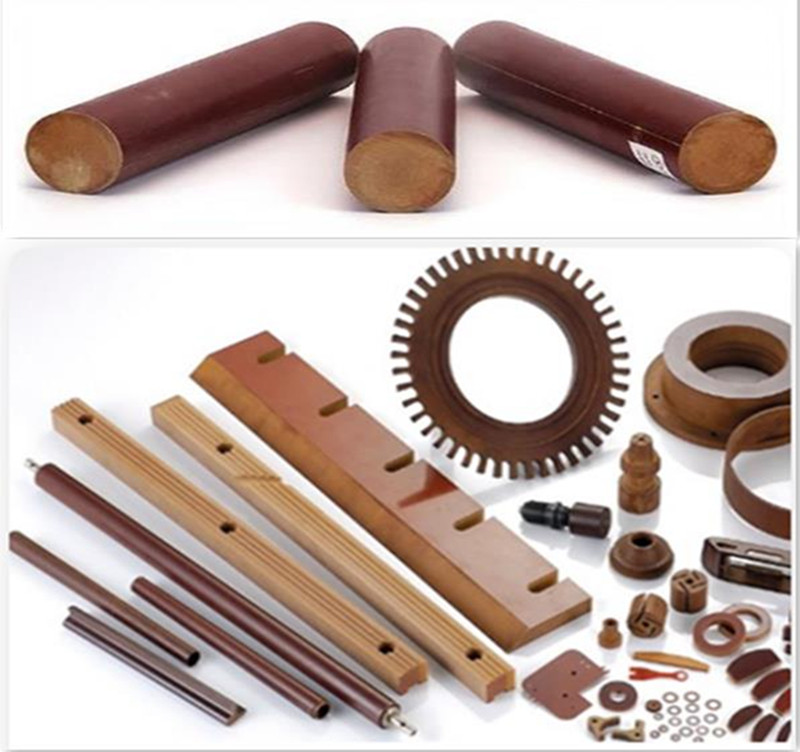

Phenolic Cotton Cloth Rod Product Usage:
Phenolic Cotton Cloth Rod has good electrical and mechanical properties under normal conditions. It is suitable for use in insulating structural parts that require certain mechanical and electrical properties in machinery, motors and electrical equipment, and can be used in oil transformer .
Bakelite Rod Service:
1. Provide free bakelite rod samples
2. Provide customized services
3. Provide product processing services
4. Provide 24-hour artificial response mechanism

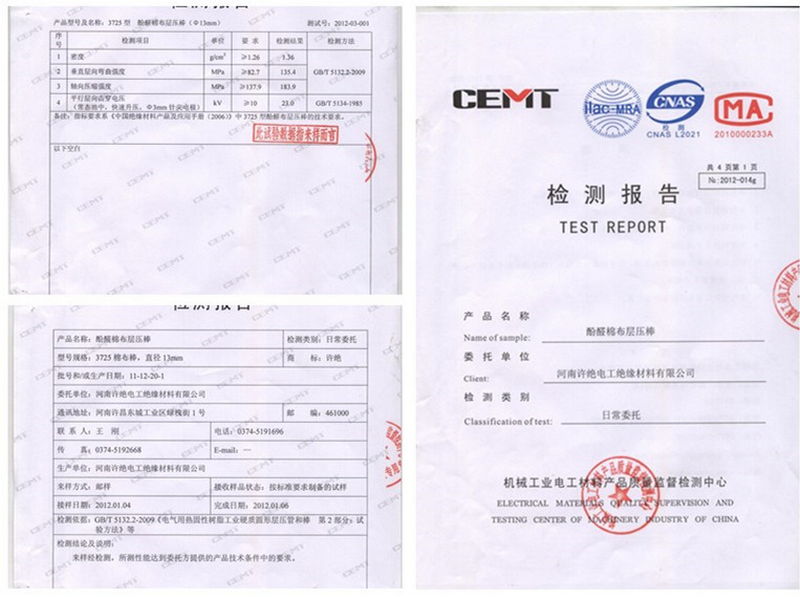

Phenolic Line Stick Test Certificate:
If you need our products please write down any questions, we will reply as soon as possible.
