G11 Epoxy Sheet

IEC：EPGC203，JIS：EL-GEH，NEMA：G-11，

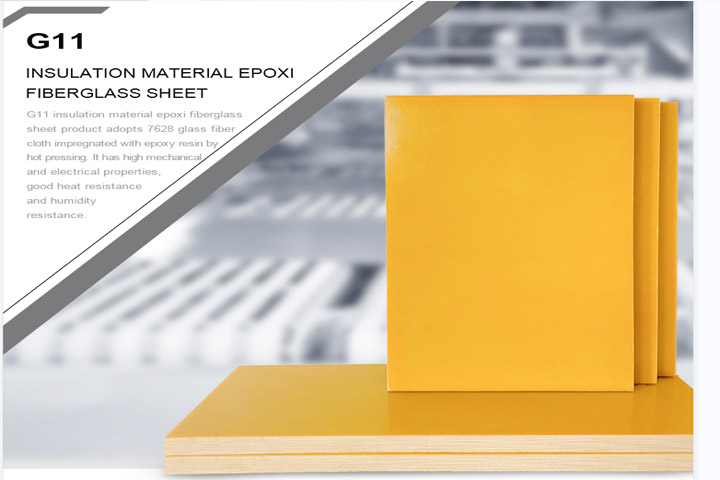

G11 high temperature epoxy resin fiberglass sheet is created by compressing fiberglass cloth, soaked in high temperature resistant epoxy resin under heat with excellent mechanical and dielectric properties, good mechanical performance at high temperature and high humidity condition, and good processability. The insulation class is H class, and the main color is yellow.

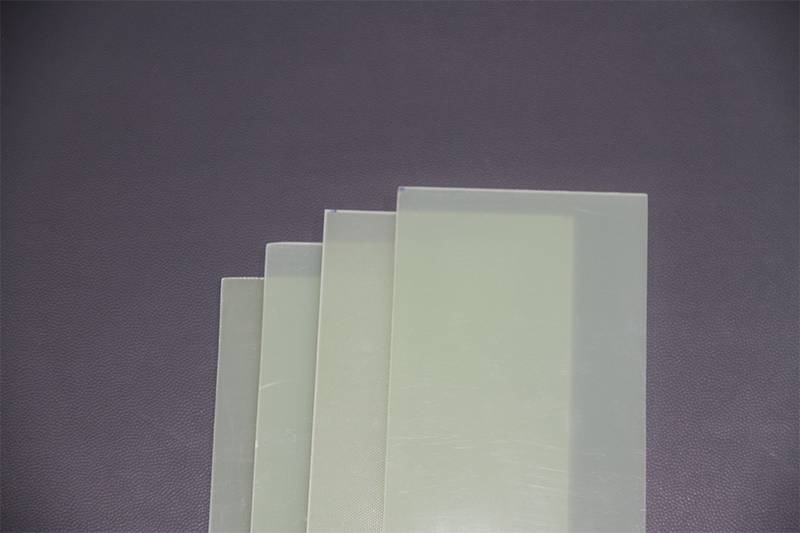

G11 Epoxy Sheet  is a fiberglass reinforced epoxy resin composite.G11 and G10 have the same characteristics, but the temperature resistance level of G11 epoxy sheet is higher

G11 Epoxy Sheet Advantages :

1.Excellent insulation performance: G11 epoxy board has high dielectric properties and insulation strength, which enables it to be used as a reliable insulation structural component in electrical equipment. This feature ensures the safe operation of electrical equipment and reduces electrical accidents caused by insulation failure.
Excellent heat resistance: G11 epoxy board has a high heat resistance level, generally reaching 160~180℃, and some products can even withstand higher temperatures. This allows it to maintain good mechanical strength and electrical properties in high temperature environments, and is suitable for electrical equipment working at high temperatures.
2.Good flame retardant performance: G11 epoxy board has UL 94 V-0 grade flame retardant performance, which means that in the combustion test, it can extinguish itself within a certain period of time and will not cause a fire. This feature makes G11 epoxy board safer in electrical equipment.
3.Low water absorption and moisture resistance: G11 epoxy board has extremely low water absorption, and the water absorption rate is only about 0.09% after immersion in water for 24 hours. At the same time, it also has good moisture resistance and can maintain stable performance in a humid environment. This makes G11 epoxy board also have a wide range of application prospects in electrical equipment in humid environments.
4.Excellent machining performance: G11 epoxy board can be punched, cut and processed according to customer requirements, and directly provide insulating accessories epoxy glass cloth laminate application. This makes it more flexible and adaptable in the manufacturing process, and can meet the needs of different customers.
5.Environmental protection characteristics: G11 epoxy board uses environmentally friendly materials and processes in the manufacturing process, so that it will not pollute the environment during use. At the same time, it also has good recyclability, which is in line with the environmental protection concept of modern society.

G11 epoxy fiberglass sheet  Video :

Technical Data：

G11 Epoxy Sheet Application:

Electrical Engineering: G-11 is widely used in the manufacturing of electrical insulation components, such as insulators and electrical insulating boards.

Mechanical Engineering: Due to its high temperature stability and mechanical strength, G-11 can be used in the production of mechanical parts, gears, support structures, etc.

High-temperature Applications: Suitable for environments requiring maintained performance under high temperatures, such as insulation for high-temperature equipment.

Chemical Industry: In environments that require resistance to chemical corrosion, G-11 can be used as a material for chemical equipment.

Aerospace: G-11 is also utilized in the aerospace industry due to its lightweight, high strength, and excellent temperature stability, such as in aircraft components.

ZTelec Group is a professional manufacturer of high-quality electrical insulation materials, integrating the research and development, production and sales of electrical and electrical insulation materials. It has more than 60 years of manufacturing experience. The production capacity and market share of insulation materials are ranked top three in the industry, and special insulation materials are ranked first.

If you are looking for G11 epoxy sheet, please contact us, we will provide you with product catalog and quotation, and can also mail you free samples for your testing.
