There are three ISO certificates for quality certification. The certificates will be shown later. ISO
After receiving the advance payment, the production cycle is 15-25 days. And the transportation cycle should be calcul……
We supply with installation guide and user manual for each transformer. If you do not understand them. We will offer v……
Color: green
Density: 1.80g / cm3
Length: 10 meters
Temperature resistance: H level
Water absorption rate: 0.09%
Customized according to drawings
Email:[email protected] Whatsapp:+8613137718313

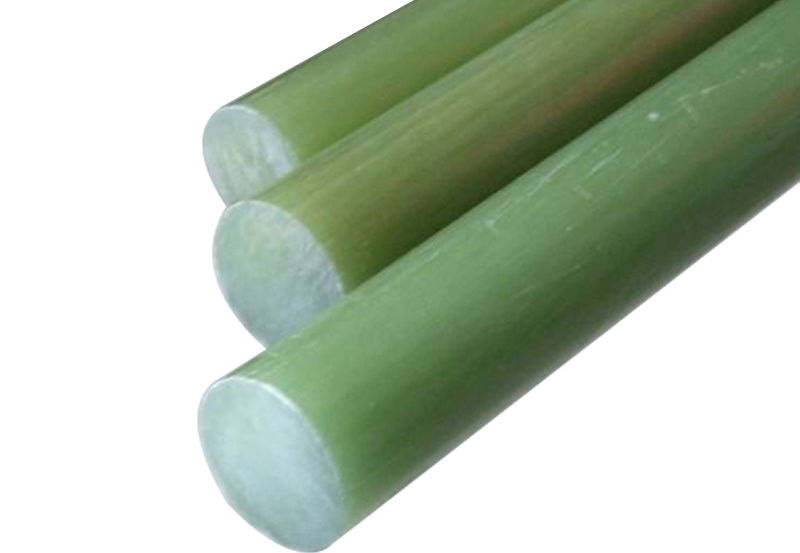

The Epoxy Resin Glass Fiber Pultrusion Material is formed by pultrusion and solidification of high-temperature mold under the force of high temperature epoxy resin impregnated with alkali-free fiberglass yarn. The product has the characteristics of high voltage resistance, corrosion resistance, no deformation and no delamination, long service life, stable mechanical properties, and excellent insulation properties. The product’s tensile performance is particularly outstanding, and its tensile strength reaches 1360Mpa or above.
Epoxy Extraction Strip Product Video：
Epoxy extraction rod Product Parameters:
| Indicator name | unit | ||
| density | g/cm2 | 1.9-2.1 | |
| Water absorption rate | % | ≤0.5 | |
| Barcol hardness | – | ≥65 | |
| Tensile strength (parallel fiber direction) | MPa | ≥500 | |
| Tensile modulus (parallel fiber direction) | MPa | ≥1.0*104 | |
| Bending strength (vertical fiber direction) | 23 ± 2 ℃ | MPa | ≥340 |
| 130 ℃ | MPa | ≥180 | |
| Flexural modulus (vertical fiber direction) | MPa | ≥0.6*104 | |
| Compressive strength | Parallel fiber direction | MPa | ≥380 |
| Vertical fiber direction | ≥180 | ||
| Shear strength | MPa | ≥70 | |
| Insulation resistance | Ω | ≥1.0*1012 | |
| Surface resistivity | Ω | ≥1.0*1011 | |
| Breakdown voltage in the fiber direction (in air) | KV | ≥50 | |
| Arc resistance | s | ≥300 | |
| Flammability | – | FV0 | |
Green epoxy drawing bar Product Use:

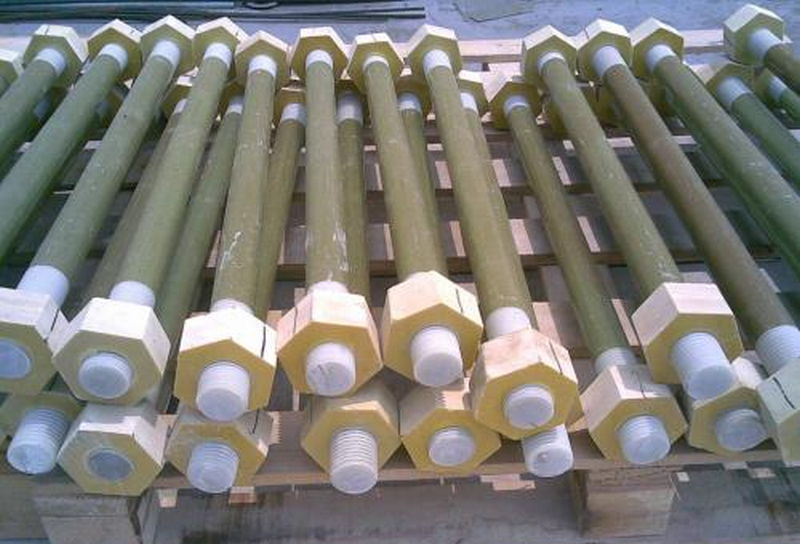

Green epoxy drawing bar is generally used for lightning arresters or insulator mandrels. It is also used for electrical equipment insulation structural parts, screw processing parts, high-voltage isolation switches. It can be used as a new bakelite column and insulation isolation column for intermediate frequency furnace.
Epoxy fiber yarn pultruded profile product display:
Epoxy fiber yarn pultruded profiles are rectangular, I-shaped, angular, T-shaped, trough-shaped, round-tube-shaped, cylindrical, and other shapes.
Epoxy Pultrusion Profile Manufacturer Provide Services:
1. Provide free samples
2.Can customize product development
3. Can process products
4. Provide technical guidance
If you need our products please write down any questions, we will reply as soon as possible.
