Color: yellow
Diameter: 8-200mm
Length: 1000mm
Density: 1.8g / m³
Support for custom production
Email:[email protected] Whatsapp:+8613137718313

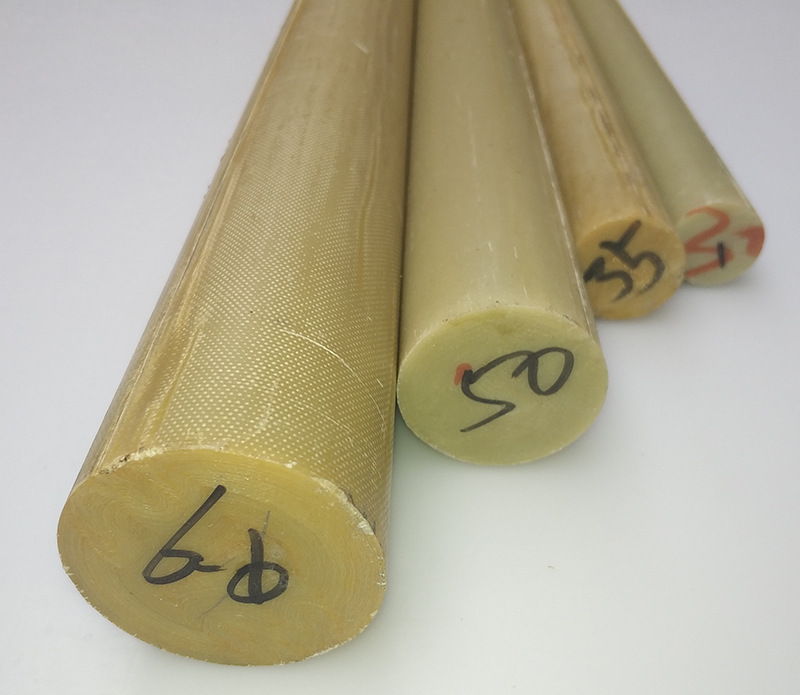

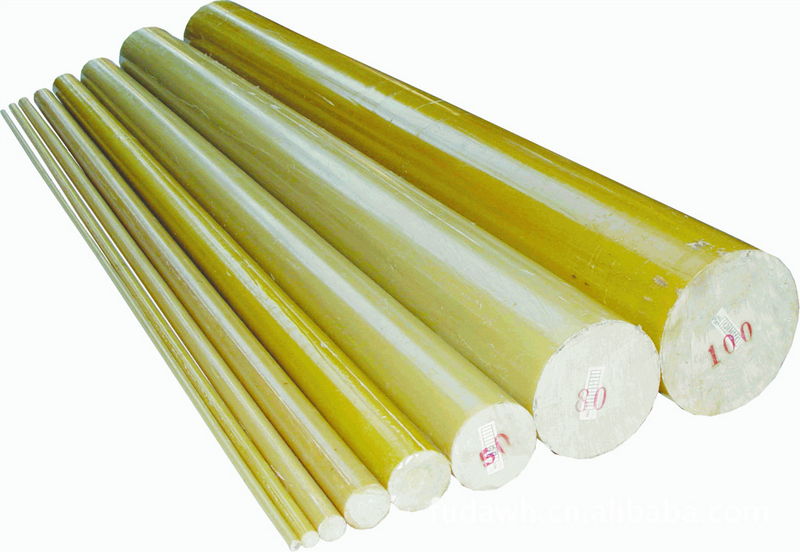

Epoxy glass cloth laminated rod is a rod formed by immersing an alkali-free glass fiber cloth in an epoxy resin and then thermally drying to form a prepreg. After being wound with the prepreg, it is put into a specific abrasive tool and hot-pressed.
Epoxy laminated glass cloth rod product video:
Epoxy glass rod Product parameters:
| chinese name | 3840epoxy rod | |
| IEC | EPGC41 | |
| color | – | yellow |
| density | g/m³ | 1.7-1.8 |
| Vertical layer bending strength (normal) | MPa | ≥220 |
| Axial compressive strength | MPa | ≥175 |
| Parallel layer breakdown voltage (90 ° C transformer oil) | Kv | ≥40 |
| Insulation resistance after immersion in water | MΩ | ≥1000 |
| Dielectric loss factor (50Hz) | – | ≤0.03 |
| Water absorption | mg/cm2 | ≤3 |
| Temperature index | – | 155 |
Epoxy rod Product Useg:
Epoxy laminated rods have high mechanical and dielectric properties. Suitable for use as insulation structural parts in motors and electrical equipment, and can be used in humid environments and transformer oils.
Delivery of epoxy glass fiber laminated rod products:

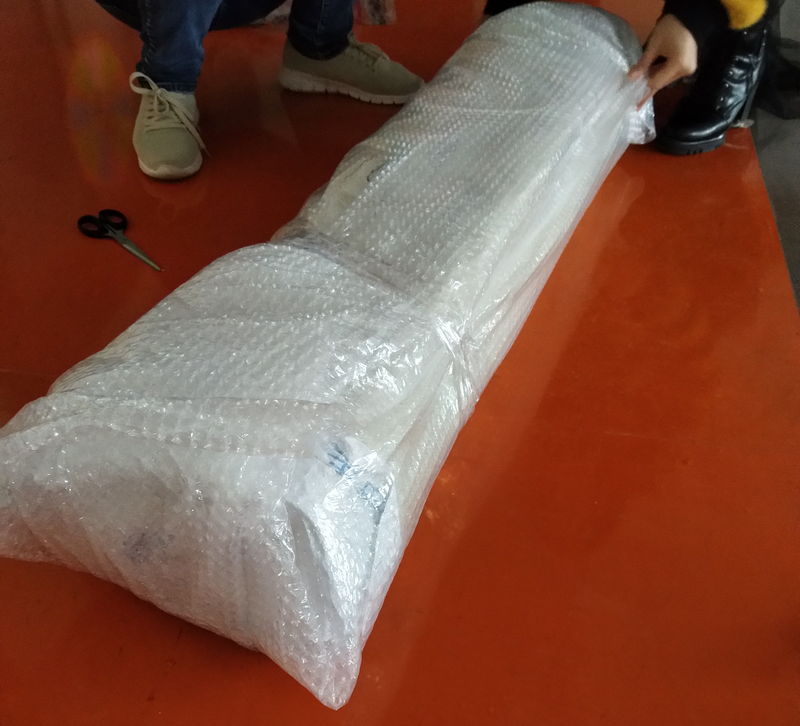

Ztelec will store the produced epoxy glass fiber laminated rods in the warehouse according to the written markings, and then when the products need to be shipped, wrap the products with anti-collision film and put them in cartons.
Epoxy rod manufacturer certificate
If you need our products please write down any questions, we will reply as soon as possible.
