Crepe paper pipe

Crepe paper pipe made from 100% virgin wood pulp, with good oil solubility, it has been widely used for the insulation of winding parts and thread wire of oil-type transformers, reactor, resistor and so on.

Crepe paper pipe production video:

Crepe paper pipe parameter：

Standard:JB/T 10441.3-2004
No.	Properties		Unit	Base Paper Thickness
				0.05mm		0.075mm		0.13mm
1	Thickness of  Crepe Paper		mm	0.35±0.05		0.38±0.08		0.70-0.90
2	Ash Content		%	≤0.7		≤0.7		≤0.8
3	Moisture Content		%	≤7.0		≤7.0		≤8.0
4	Water Extraction PH		–	6.0-8.0
5	Oil Contamination		%	<0.1
6	Tensile Strength	MD	N	30	40		50
		CD	N	20	30		40
7	Oil Absorption Height	MD	mm/10min	≥7.0
			mm/60min	≥30.0
		CD	mm/10min	≥20.0
			mm/60min	≥50.0
8	Crepe Ratio		%	50
9	Power Frequency Breakdown Voltage		V/layer	≥950	≥1000		≥1000
10	Conductivity		ms/m	–	–		≤10
11	Appearance density		g/m²	60±10%	110±10%		120-150

Note:The data in the above table only represents typical or average data, just for reference in practical application.It does not bear any responsibility for the use of the product or related legal liability.



Crepe paper pipe application:

Crepe paper pipe is mainly used for the insulation of wires in oil-type transformer:

Crepe paper pipe product features:

1.Insulation class A (105 °C).

2.Direction of crepe paper is transversal.

3.The end of the last layer is bonded only.

4.Excellent compatibility with insulating liquids.

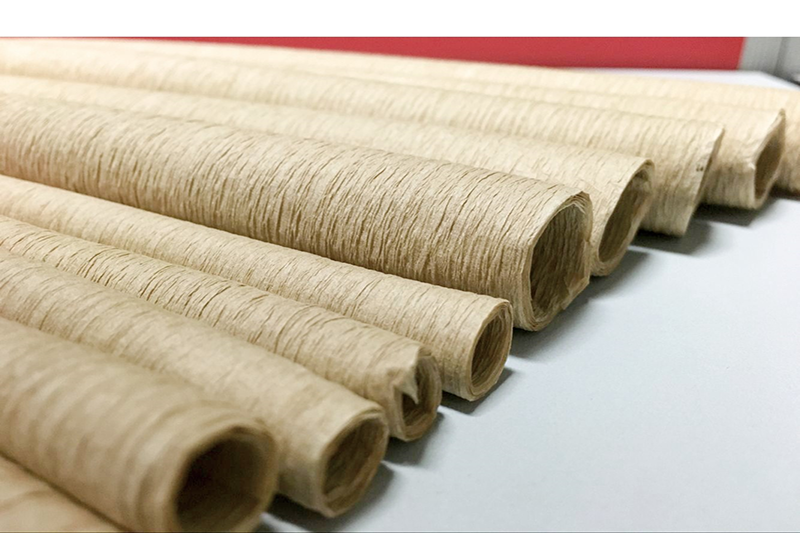

Crepe paper pipe product display:

Crepe paper pipe is made in a rolled process with electrical crepe paper and mainly used in oil-immersed transformer as insulation wrapping.

low tap and screw external insulation crepe paper soft casing, has reliable flexibility, arbitrary direction bending without fracture of merit.

Crepe paper pipe manufacturing process:

1.Material Preparation:

The first step is to prepare the materials required for making crepe paper pipes. This typically includes crepe paper rolls, adhesive or bonding agent, and any additional materials such as reinforcement.

2.Creping:

The crepe paper is fed into a creping machine, where it undergoes a creping process. This involves stretching and crinkling the paper to create a textured surface, which enhances the flexibility and elasticity of the paper.

3.Adhesive Application:

The crepe paper is then coated or impregnated with an adhesive or bonding agent. This adhesive helps to bond the layers of crepe paper together and provide structural integrity to the pipe.

4.Forming the Pipe:

The adhesive-coated crepe paper is then wrapped or wound around a mandrel or pipe-forming machine. The layers are applied in a spiral or helical pattern, ensuring that each layer overlaps with the previous one to create a solid and durable pipe structure.

5.Drying and Curing:

Once the pipe is formed, it goes through a drying and curing process to allow the adhesive to set and harden. This may involve passing the pipe through a drying oven or using other methods to remove moisture and facilitate curing.

6.Finishing and Inspection:

After drying and curing, the crepe paper pipe undergoes finishing processes such as trimming the edges, removing any imperfections, and inspecting for quality assurance. This ensures that the pipe meets the required specifications and standards.

7.Packaging:

Finally, the finished crepe paper pipes are packaged and prepared for shipment or distribution.

It is important to note that the specific manufacturing process may vary depending on the desired specifications, size, and application of the crepe paper pipes.
